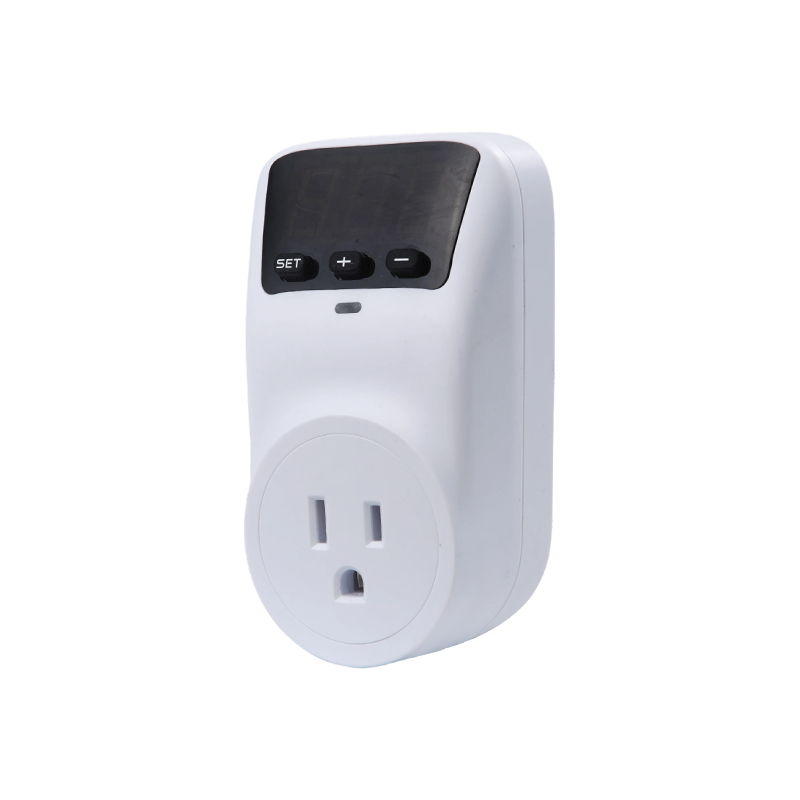

READ MOREThe HWTB-V038-US is a high-end digital display protection device specifically developed for 110V/60Hz US standard power grid environments. With a stable output capacity of 15A/1800W, it provides users with accurate power health monitoring and automated over/under voltage protection logic.
The core advantage of this product lies in its powerful digital adjustment system. Through an intuitive digital display, users can precisely set the waiting time (5-999 seconds selectable, preset 5 seconds) and flexibly adjust the undervoltage protection value (90V-115V, preset 90V) and overvoltage protection value (125V-145V, preset 140V). This fine-tuning capability allows the protector to provide the most scientific protection curves for the compressor characteristics of different brands of computers, refrigerators, and air conditioners.
This model uses a high-grade copper conductive structure internally, possessing excellent wear resistance and low heat generation characteristics, ensuring stable performance even under high-frequency operation. The product integrates an optional 125J surge protection module, which, together with a high-precision microprocessor algorithm, can effectively resist the impact of instantaneous power surges on office appliances such as printers and fans.
Safety and performance specifications: Flame retardant V0 and pure copper conductor
|
Operating Voltage |
110V |
|
Wait Time |
5-999-300s (Adjustable) Default - 5s |
|
Frequency |
60Hz |
|
Power |
15A/1800W |
|
Undervoltage |
90V-115V (Adjustable) Default - 90V |
|
Overvoltage |
125-145V (Adjustable) Default - 140V |
|
Surge |
125J (Optional) |
|
Warranty |
1 Year |
